Think (Th!nk) Fun electric bike

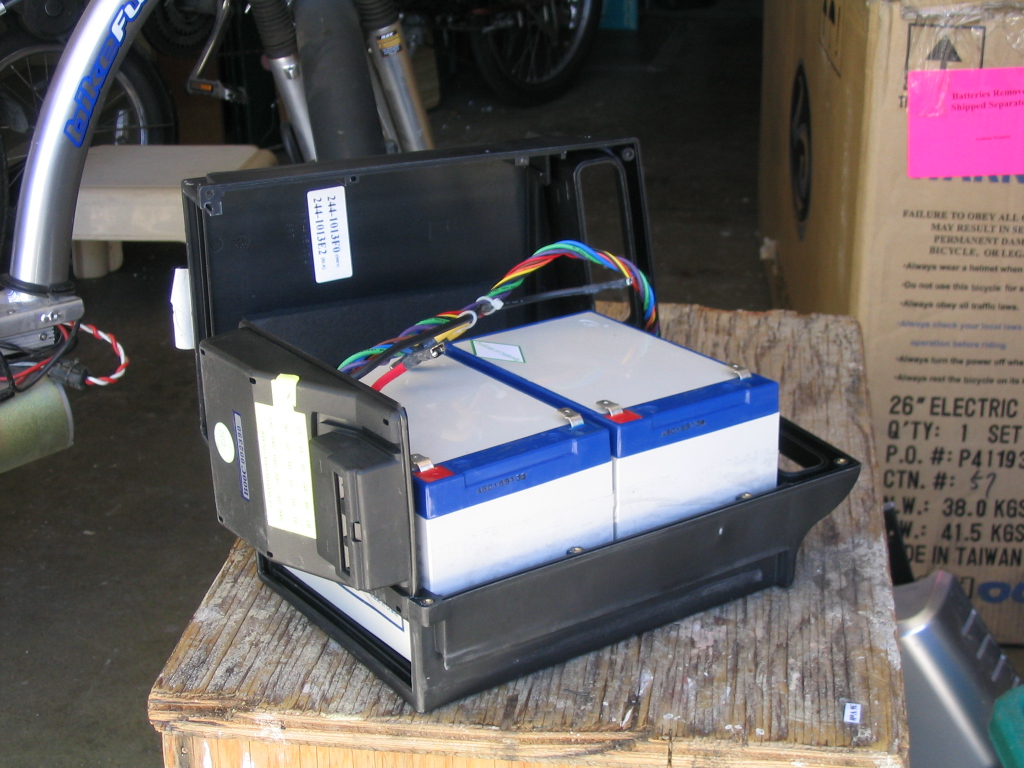

The battery pack halves have grooves to accept the bottom plate.
The battery pack halves have grooves to accept the bottom plate.

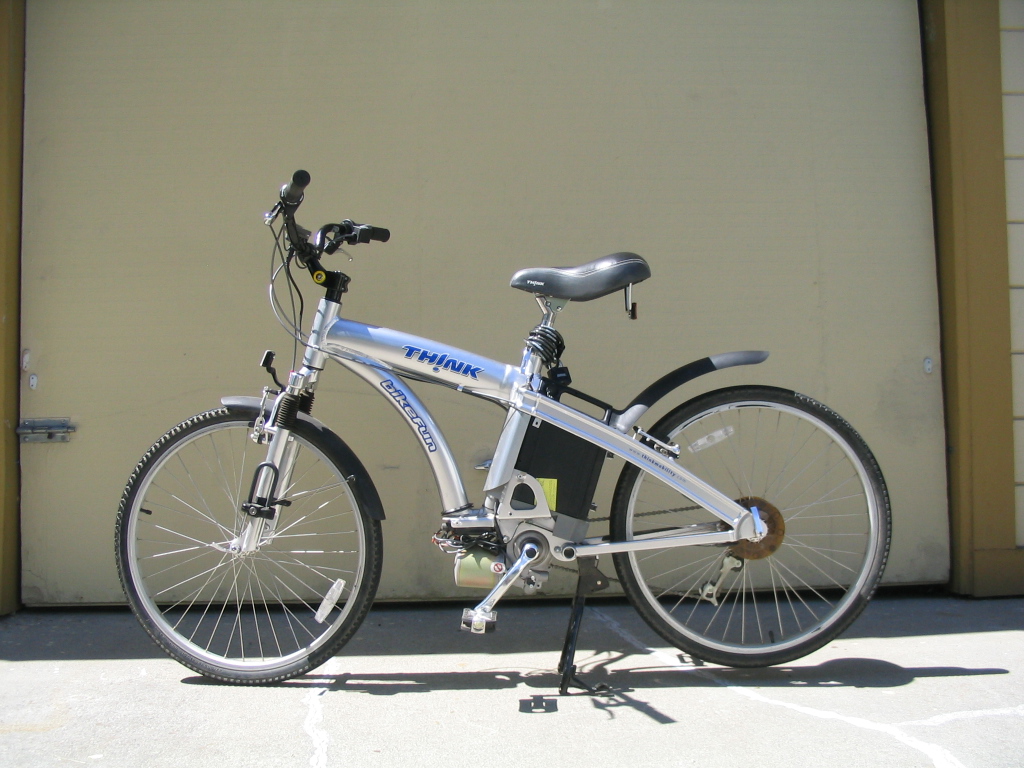

Here's the bike without the two side panels (and the pedals re-installed).
The battery pack is locked into position (as shown). Futher clockwise turning enables the system; the handlebar throttle assembly turns the power ON/OFF.

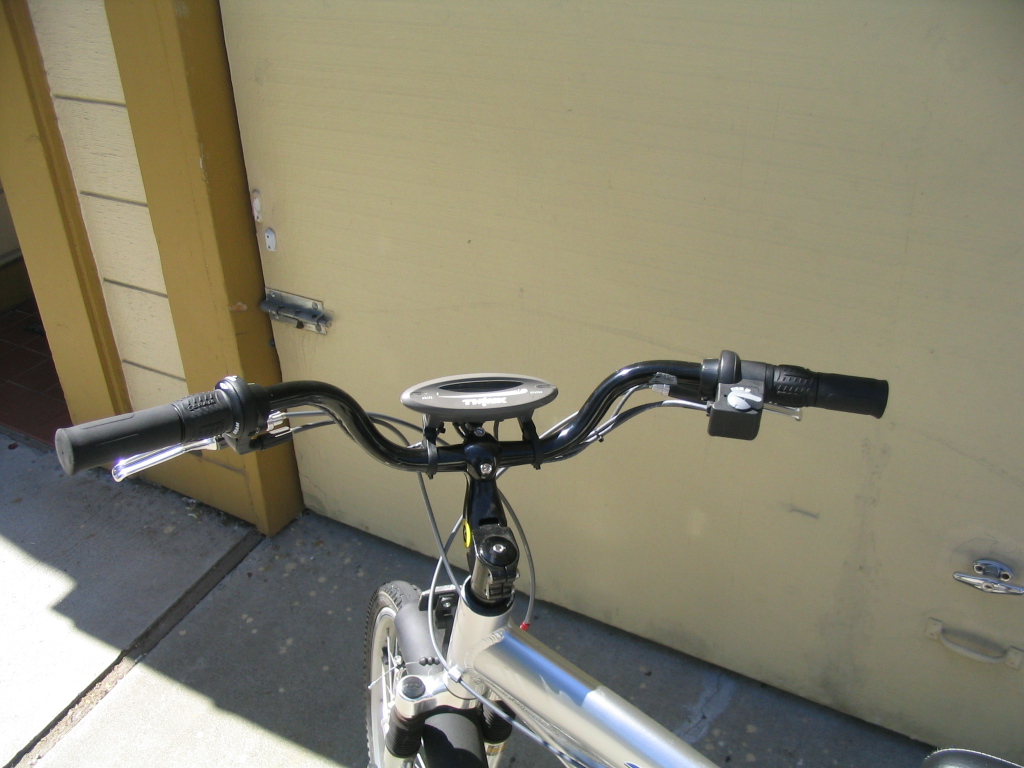

The display tells battery level and error codes.
The black sensor uses the magnets in the brown plastic hub-plate to determine speed. Once 20 mph is reached, the controller stops the motor until the speed falls below 20 mph.

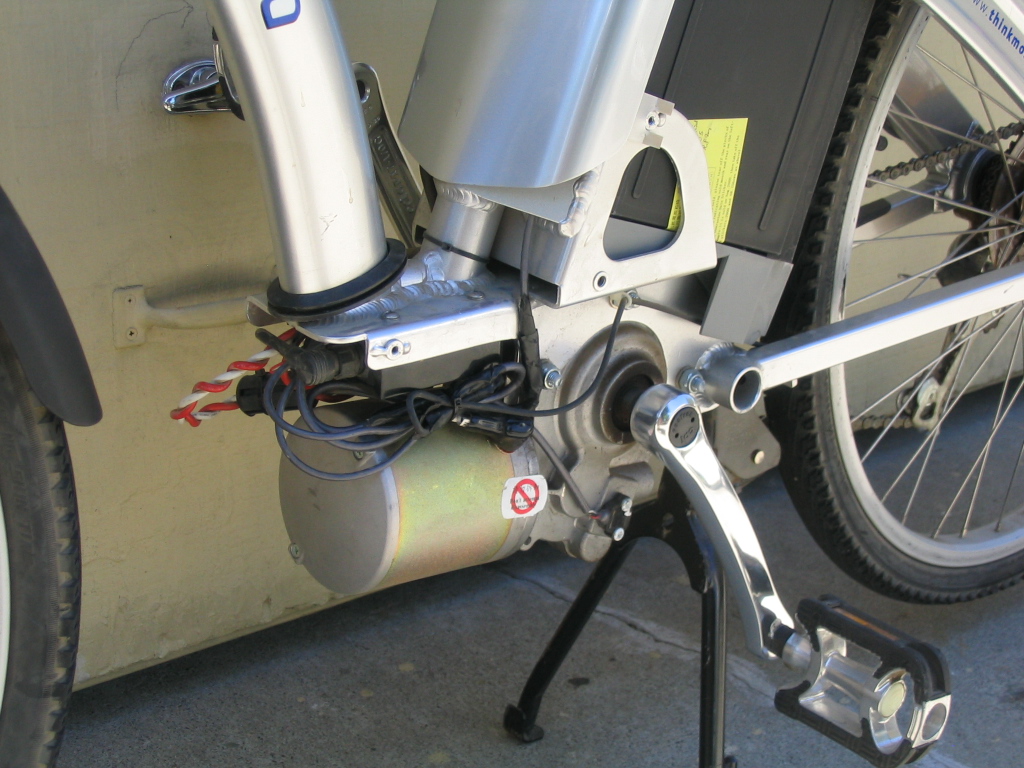

The sensor beneath the crank senses pedal pressure; the controller then applies power.
The finned box above the motor is the controller.
