Lithium Batteries
ULTRA! High Performance Lithium-Nickel/Manganese/Cobalt Batteries
     These advanced 'Next-Gen' batteries for 2018 are the most energy dense (190Wh/kg), lightest weight, and highest performing (65amp continuous, 100+amp peak) E-bike batteries on the market today at this very affordable low price.  The super high current - 100+amps on demand translates to lightning fast acceleration/high torque when used with capable motor systems!  It is amazing that batteries this compact can have such a phenomenal performance, long range, and extended lifetime.  We also use a very high power BMS (battery management system) to maximize the capability of our cells.  Battery packs are ISO9001 certified to maintain high quality standards.

ALL Batteries have 4amp charger option. 6 Amp amd 8 Amp are also available and recommended for larger sizes.

You can also choose power connector for your battery including Male/Female Disconnects (Electoride Standard), Gray Anderson (Electric Rider Standard), Smaller Red and Black Anderson, and XT90.

[74V, 89V, and 104V are available by connecting 2 batteries below in series at 13Ah, 15Ah, or 21Ah.]
[26Ah, 30Ah, 42Ah are available at 37V or 52V by connecting 2 batteries below in parallel.  Instructions provided upon request.]

WE can make CUSTOM sizes with a variety of specs upon request. Custom sizes require 3-6 weeks to manufacture and deliver depending on requirements.

Choose Your Options:
Quantity:
Battery:
Charger:
Discharge Power Connectors:


3% discount sending check by secure email. Details
**Range Estimates are based on optimal conditions: FLAT ground, 170 lb. rider @20 MPH steady cruise. Pedaling can as much as double your range in some cases**

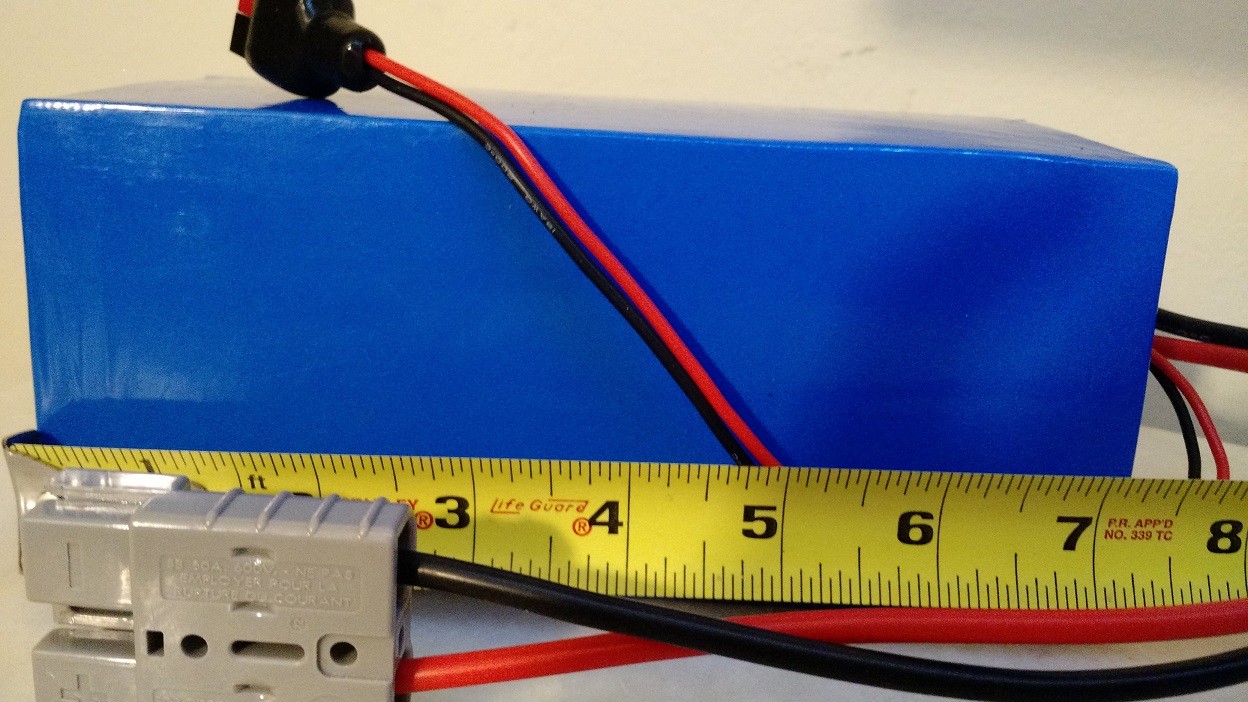

ElectroRideTM ULTRA HP 37V 13Ah and 15Ah


Note: Size, weight, configuration, and current output of battery and cell are the same for both 13Ah and 15Ah sizes. Only difference is cell energy capacity and range (and price).

LiNMC 37V 13Ah Battery Charger 2A 37V 13Ah and 15Ah 65Amp Continuous 100Amp Peak Fuse and Fuse Holder

  • Powerful BMS and Cells: Continuous current 65A or 5C. (2400W)
  • Instantaneous Current: 100+A up to 10C. (3700W+)
  • Compact Battery Pack Size: 7.25" X 3.8" X 3.1"
  • Unbelievably Light Weight: 5.5 lbs! Specific Energy ~ 192 Wh/kg
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. Up to 7 years if used gently (Discharged 80% or less)
  • Long Range for 13Ah: Up to 22 miles (w/o pedaling)/ 44+ miles (w/pedaling) **
  • Long Range for 15Ah: Up to 26 miles (w/o pedaling)/ 52+ miles (w/pedaling) **
  • Fast Charger: 4A, 2-3 hours max charge time
  • Cell Type 13Ah: Latest High Current LG or Samsung 18650 2500mAh for 13aH (more information on cell below)
  • Cell Type 15Ah: Latest High Current LG or Samsung 18650 3000mAh for 15aH
  • Cell Combination: 10S5P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

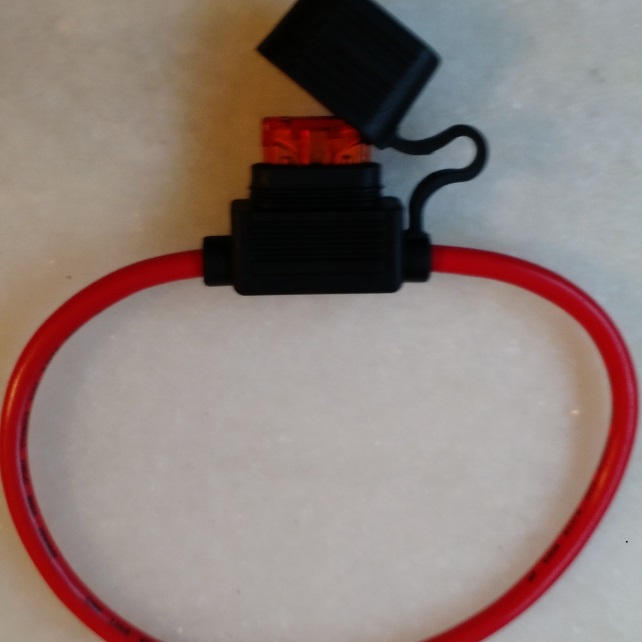

Sale Price 37V 13Ah -- $499.00 (Includes Fuse/Fuse Holder for Protection)

Reg. Price 37V 13Ah -- $665.00
$459.00 when purchased with one of our Ebikes or Conversion Kits such as:
The ENDURO Hub,The CRYSTALYTE Hub, or The KINETIC8-FUN Mid Drive.

Sale Price 37V 15Ah -- $619.00 (Includes Fuse/Fuse Holder for Protection)

Reg. Price 37V 15Ah -- $795.00
$599.00 when purchased with one of our Ebikes or Conversion Kits such as:
The ENDURO Hub,The Crystalyte Hub, or The KINETIC8-FUN Mid Drive.
Choose Your Options:
Quantity:
Battery:
Charger:
Discharge Power Connectors:


3% discount sending check by secure email. Details
**Range Estimates are based on optimal conditions: FLAT ground, 170 lb. rider @20 MPH steady cruise. Pedaling can as much as double your range in some cases**

ElectroRideTM ULTRA HP 37V 21Ah


LiNMC 37V 13Ah Battery Charger 4A Fuse and Fuse Holder

  • Powerful BMS and Cells: Continuous current 65A or 5C. (2400W)
  • Instantaneous Current: 100+A up to 10C. (3700W+)
  • Compact Battery Pack Size: 7.5" X 5.3" X 3.1"
  • Unbelievably Light Weight: 8.4 lbs! Specific Energy ~ 192 Wh/kg
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. Up to 7 years if used gently (Discharged 80% or less)
  • Really Long Range: Up to 37 miles (w/o pedaling)/ 74+ miles (w/pedaling) **
  • Fast Charger: 6A, 2-3 hours max charge time
  • Cell Type: Latest High Current LG or Samsung 18650 3000mAh
  • Cell Combination: 10S7P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

Sale Price $799.00 (Includes Fuse/Fuse Holder for Protection)

Reg. Price $995.00
$729 when purchased with one of our Ebikes or Conversion Kits such as:
The ENDURO Hub,The Crystalyte Hub, or The KINETIC8-FUN Mid Drive.
Choose Your Options:
Quantity:
Battery:
Charger:
Discharge Power Connectors:


3% discount sending check by secure email. Details
**Range Estimates are based on optimal conditions: FLAT ground, 170 lb. rider @20 MPH steady cruise. Pedaling can as much as double your range in some cases**">

ElectroRideTM ULTRA HP 48V 30Ah (Pedicab Favorite)


LiNMC 37V 13Ah Battery Charger 4A Fuse and Fuse Holder

  • Powerful BMS and Cells: Continuous current 65A or 5C. (2400W)
  • Instantaneous Current: 100+A up to 10C. (3700W+)
  • Compact Battery Pack Size: 9.6" X 5.3" X 4.5"
  • Unbelievably Light Weight: 15 lbs! Specific Energy ~ 192 Wh/kg
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. Up to 7 years if used gently (Discharged 80% or less)
  • Really Long Range: Up to 70 miles (w/o pedaling)/ 140+ miles (w/pedaling) **. (Pedicab will have less range than standard ebike.)
  • Fast Charger: 8 Amp, 2-3 hours max charge time
  • Cell Type: Latest Panasonic Cells
  • Cell Combination: 13S10P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

Sale Price $1196.00 (Includes Fuse/Fuse Holder for Protection)

Reg. Price $1495.00
$1099.00 when purchased with one of our Ebikes or Conversion Kits such as:
The ENDURO Hub,The Crystalyte Hub, or The KINETIC8-FUN Mid Drive.
Choose Your Options:
Quantity:
Battery:
Charger:
Discharge Power Connectors:


3% discount sending check by secure email. Details
**Range Estimates are based on optimal conditions: FLAT ground, 170 lb. rider @20 MPH steady cruise. Pedaling can as much as double your range in some cases**">

ElectroRideTM ULTRA HP 52V 13Ah and 15Ah

Note: Size, weight, configuration, and current output of battery and cell are the same for both 13Ah and 15Ah sizes. Only difference is cell energy capacity and range (and price).

LiNMC 52V 13Ah Battery Charger 2A Fuse and Fuse Holder

  • Powerful BMS and Cells: Continuous current 65A or 5C. (3400W)
  • Instantaneous Current: 100+A up to 10C. (5200W+)
  • Compact Battery Pack Size: 7.25" X 5.1" X 3.1"
  • Unbelievably Light Weight: 7.5 lbs! Specific Energy ~ 198 Wh/kg
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. Up to 7 years if used gently (Discharged 80% or less)
  • Long Range 13Ah: Up to 30 miles (w/o pedaling)/ 60+ miles (w/pedaling) **
  • Long Range 15Ah: Up to 36 miles (w/o pedaling)/ 72+ miles (w/pedaling) **
  • Fast Charger: 4A (2-3 hours max charge time)
  • Cell Type 13Ah: Latest High Current LG or Samsung 18650 2500mAh for 13aH (more information on cell below)
  • Cell Type 15Ah: Latest High Current LG or Samsung 18650 3000mAh for 15aH
  • Cell Combination: 14S5P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

Sale Price 52V 13Ah -- $679.00 (Includes Fuse/Fuse Holder for Protection)

Reg. Price -- $845
$609 when purchased with one of our Ebikes or Conversion Kits such as:
The ENDURO Hub, The CRYSTALYTE Hub, or The KINETIC8-FUN Mid Drive.

Sale Price 52V 15Ah -- $799.00 (Includes Fuse/Fuse Holder for Protection)

Reg. Price $995
$818 when purchased with one of our Ebikes or Conversion Kits such as:
The ENDURO Hub, The CRYSTALYTE Hub, or The KINETIC8-FUN Mid Drive.
Choose Your Options:
Battery:
Charger:
Discharge Power Connectors:


3% discount sending check by secure email. Details
**Range Estimates are based on optimal conditions: FLAT ground, 170 lb. rider @20 MPH steady cruise. Pedaling can as much as double your range in some cases**

ElectroRideTM ULTRA HP 52V 21Ah


LiNMC 52V 21Ah Battery Charger 4A Fuse and Fuse Holder

  • Powerful BMS and Cells: Continuous current 65A or 5C. (3400W)
  • Instantaneous Current: 100+A up to 10C. (5200W+)
  • Compact Battery Pack Size: 10.5" X 5.3" X 3.1"
  • Unbelievably Light Weight: 11.0 lbs! Specific Energy ~ 192 Wh/kg
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. Up to 7 years if used gently (Discharged 80% or less)
  • Really Long Range: Up to 50 miles (w/o pedaling)/ 100+ miles (w/pedaling) **
  • Fast Charger: 6A, 2-3 hours max charge time
  • Cell Type: Latest High Current LG or Samsung 18650 3000mAh
  • Cell Combination: 14S7P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

Sale Price $1099 (Includes Fuse/Fuse Holder for Protection)

Reg. Price $1265
$989 when purchased with one of our Ebikes or Conversion Kits such as:
The ENDURO Hub,The Crystalyte Hub, or The KINETIC8-FUN Mid Drive.
Choose Your Options:
Battery:
Charger:
Discharge Power Connectors:


3% discount sending check by secure email. Details
**Range Estimates are based on optimal conditions: FLAT ground, 170 lb. rider @20 MPH steady cruise. Pedaling can as much as double your range in some cases**

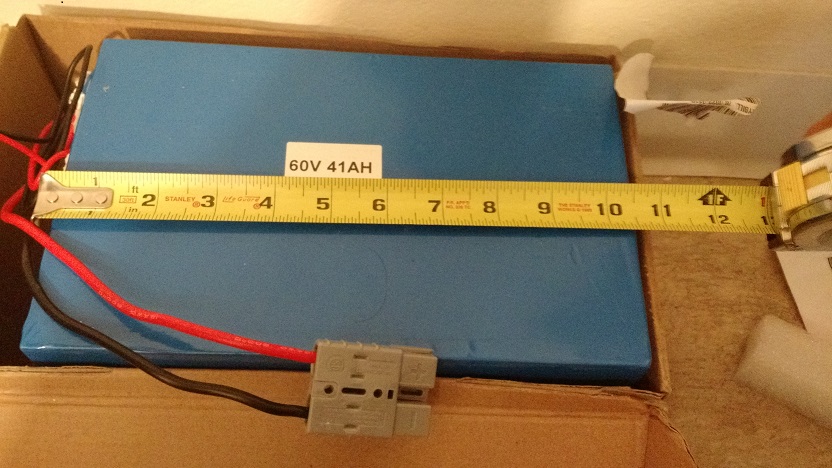

ElectroRideTM ULTRA HP 60V 41Ah (Motorscooter Favorite)

--Long Range Battery Option for 60V Motorscooters such as  The ElectroRide™ e-MotorScooter 800+ mpgE

LiNMC 52V 21Ah Battery Charger 4A LiNMC 60V 30Ah Fuse and Fuse Holder

  • Powerful BMS and Cells: Continuous current 65A or 5C. (3400W)
  • Instantaneous Current: 100+A up to 10C. (5200W+)
  • Compact Battery Pack Size: 10.25" X 6.5" X 5.25"
  • Unbelievably Light Weight: 25.0 lbs! Specific Energy ~ 192 Wh/kg
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. Up to 7 years if used gently (Discharged 80% or less)
  • Really Long Range for MotorScooter: 70-80 Miles ElectroRide™ e-MotorScooter 800+ mpgE (@25 mph);
  • Extreme Long Range for 60V Ebikes: EBikes Up to 100+ miles (w/o pedaling)/ 200+ miles (w/pedaling)
  • Fast Charger: 8 Amp, 2-3 hours max charge time
  • Cell Type: Latest High Current cells from Panasonic
  • Cell Combination: 16S14P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

Sale Price $1695 (Includes Fuse/Fuse Holder for Protection)

Reg. Price $2100
$1349 when purchased with one of our Motor Scooter such as:
The ElectroRide™ e-MotorScooter 800+ mpgE.
$1549 when purchased with one of our Crystalyte HS35XX Series or Crown Motor Conversion Kits such as:
The Crystalyte Hub or The Crystalyte Crown Hub.
Choose Your Options:
Battery:
Charger:
Discharge Power Connectors:


3% discount sending check by secure email. Details
**Range Estimates are based on optimal conditions: FLAT ground, 170 lb. rider @20 MPH steady cruise. Pedaling can as much as double your range in some cases**

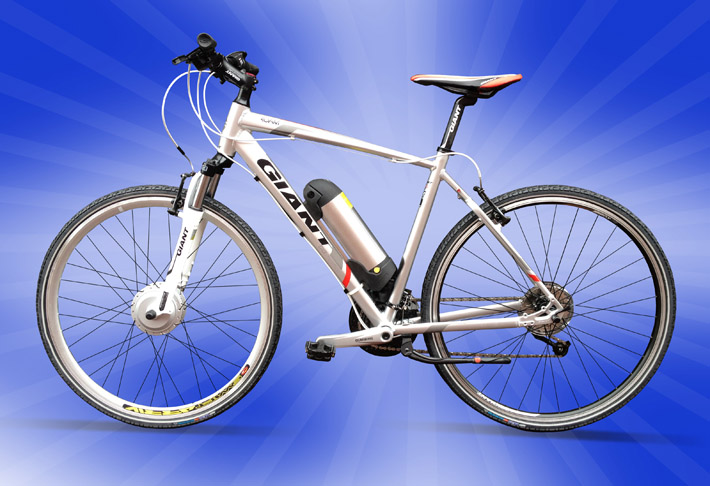

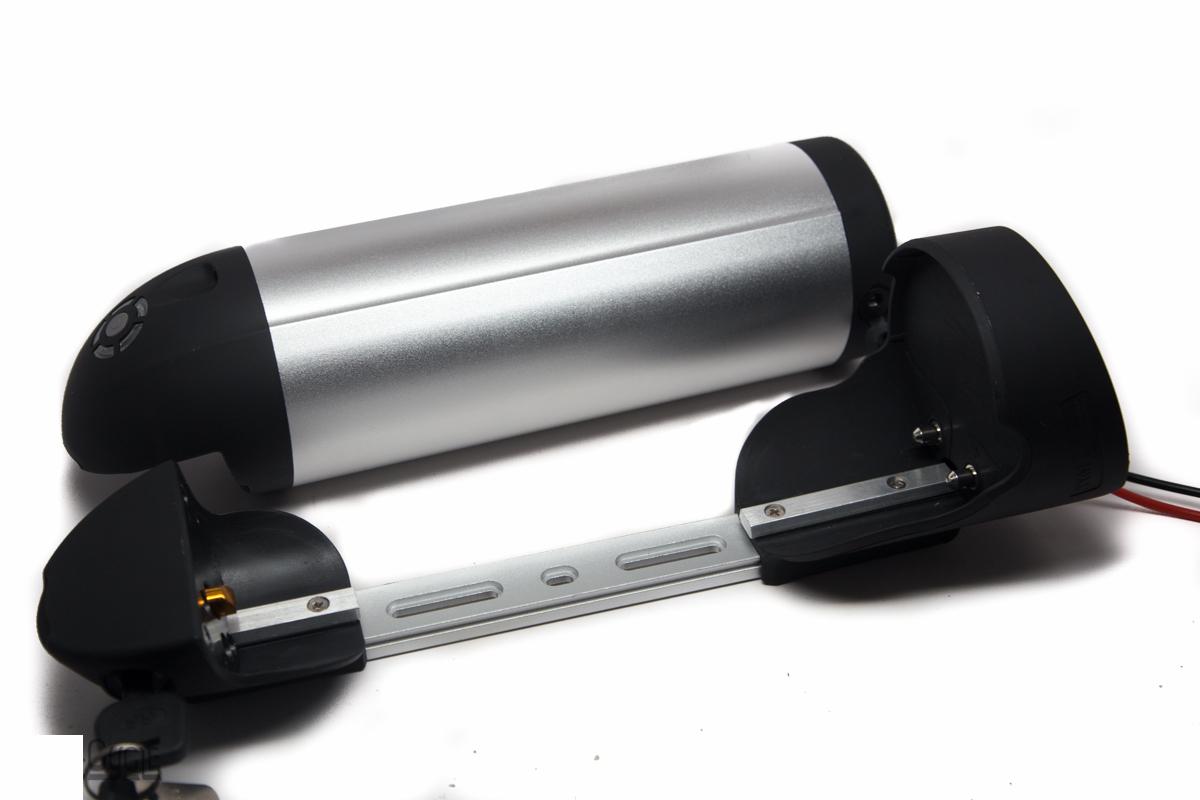

ElectroRideTM 37V 15Ah 'Water Bottle' Battery

LiNMC 37V 15Ah Bottle Battery LiNMC 37V 15Ah Bottle Battery

  • BMS and Cells: Continuous current 30A or 2C. (1100W)
  • Instantaneous Current: 40A up to 3C. (1500W) This is not your average water bottle battery!!
  • Bottle Case Size: Length 15.5", Diameter 3.5"
  • Light Weight: 7.2 lbs
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. More if used gently (Discharged 80% or less)
  • Long Range: Up to 25 miles (w/o pedaling)/ 50+ miles (w/pedaling) **
  • Free Charger: 2A, 7 hours max charge time
  • Cell Type: Samsung 18650 29E 2900mAh
  • Cell Combination: 10S5P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

Price $699.00

Quantity: 3% discount sending check by secure email. Details


ElectroRideTM 52V 12Ah 'Water Bottle' Battery

LiNMC 52V 12Ah Bottle Battery LiNMC 52V 12Ah Bottle Battery

  • BMS and Cells: Continuous current 30A or 2C. (1100W)
  • Instantaneous Current: 40A up to 3C. (1500W) This is not your average water bottle battery!!
  • Bottle Case Size: Length 15.5", Diameter 3.5"
  • Light Weight: 8 lbs
  • Cycle Life: 750 recharges @ 100% DoD; 1,900 @ 80% DoD
  • Life Expectancy: 3+ years. More if used gently (Discharged 80% or less)
  • Long Range: Up to 28 miles (w/o pedaling)/ 56+ miles (w/pedaling) **
  • Free Charger: 2A, 6 hours max charge time
  • Cell Type: Samsung 18650 29E 2900mAh
  • Cell Combination: 14S4P
  • Manufaturer is ISO9001 Certified - Series of high standards adopted. worldwide, originated by United States Department of Defense.

Price $799.00

Quantity: 3% discount sending check by secure email. Details

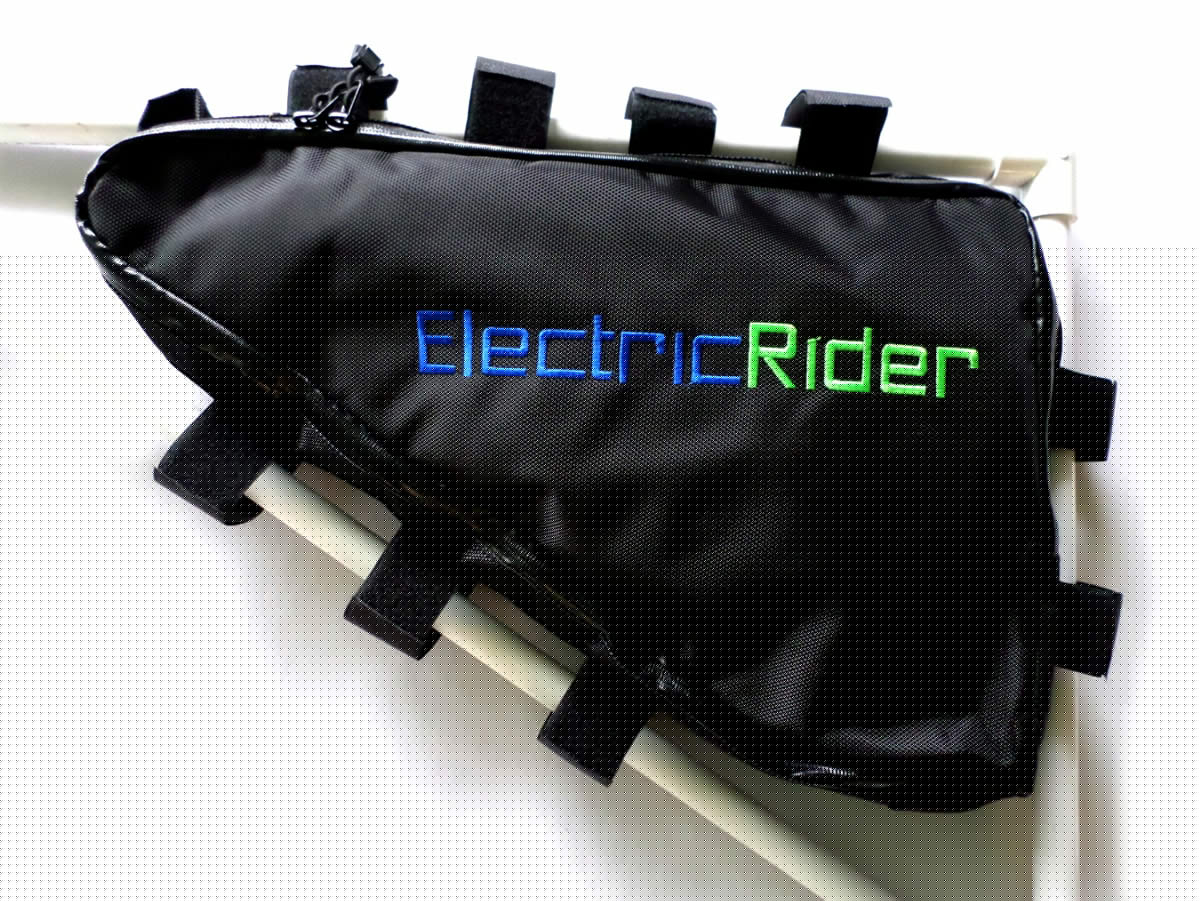

Triangle Bag

If you want to mount the ElectroRideTM Ultra High Performance batteries above in the frame of your bike consider our Triangle Bag. Our batteries are so compact, even two of them can fit, which is useful for 72V operation or more range.

Price $49.00

Triangle Bag

Quantity: 3% discount sending check by secure email. Details


Battery Care

As with any battery, you can get longer lifetime if you keep the power under the designated amp rating, avoid completely discharging the battery, and always fully charge whenever you can. Fortunately these batteries are rated for very high amps, so this means you mainly can focus on depth of discharge for long lifetime.  These LiNMC cells are “deep cycle” meaning that they have the ability to be fully charged and discharged. However the life of the battery will significantly increase if the depth of each discharge is limited to 80% of the rated capacity.

The best way to avoid overdischarge is to get a power meter like a Cycle Analyst that tracks amount of Ah used.  Just make sure you do not go more than 10Ah for a 13Ah battery above, and you will ensure you go no more than 80% depth of discharge.  If your motor kit does not come with a power meter like the Cycle Analyst, you can purchase the Large Screen Cycle Analyst Standalone below.

Cycle Analyst Large Screen Standalone

$135.00

Quantity: 3% discount sending check by secure email. Details


LiNMC 52V 13Ah Battery

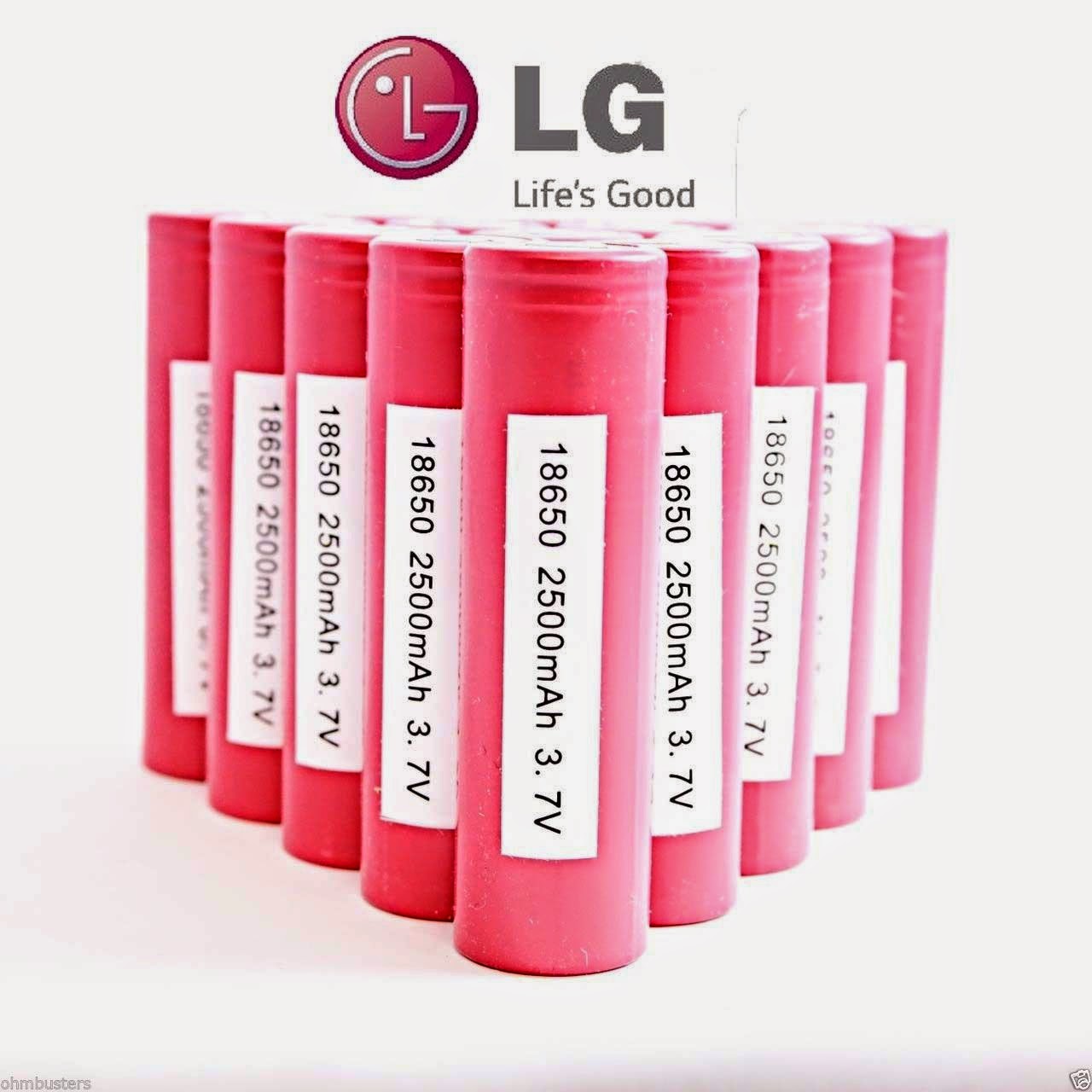

Manufacturer's Description of Cell Used

  • Cell Model: Latest High Current LG and/or Samsung 18650--Always the most recent advances in Battery Chemistry from best cell vendors.
  • Nominal Capacity: 2500mAh
  • Chemistry: Li[NiMnCo]O2 (H-NMC) / Graphite + SiO
  • High Drain- 20A constant current, 35A pulse current load.
  • Nominal Voltage: 3.7 V
  • Full charge Voltage: 4.2V
  • Max Charge Current: 4 amps
  • Cycle Life: 750 @ 100% DoD; 1,900 @ 80% DoD
  • Positive terminal type: Flat Top
  • Diameter 18.3 +0.2/-0.3 mm
  • Height 65.0 ± 0.2 mm
  • Weight: Approx 45 grams
  • Initial Internal Resistance measured in megaOhms with a 1khz AC signal: Specified 15,  Actual 12 to 13
  • Initial Internal Resistance measured in megaOhms with a DC signal: Specified 30,  Actual 21 to 22

Comparing LiFePO4 to LiNMC

In spite of the various chemical variations, lithium-ion batteries can generally be separated into two groups: lithium iron phosphate (LFP, LiFePO4) and metal oxides (NMC, NCA, Cobalt, Manganese).  Table 1outlines the differences between LFP and LiNMC chemistry classes on a cell level. The values in the table reflect average values as there is variation in each class.



Table 1: Lithium-ion subcategory comparison



LFP

LiNMC

Voltage

3.3 V nominal (2-3.6 V/cell)

3.7 V nominal (2.7-4.2 V/cell)

Energy Density

300 Wh/L

735 Wh/L

Specific Energy

128 Wh/kg

256 Wh/kg

Power

90 - 120 W/kg

512 W/kg

Cycle Life

1,000 @ 100% DoD

2,000 @ 80% DoD

750 @ 100% DoD

1,900 @ 80% DoD

Calendar Life

6 years

8 years

Max recommended temperature

40°C

55°C

Commercial Suppliers

A123, Valence, BAK, BYD, K2, Lishen, many Chinese vendors

Sanyo, Panasonic, Samsung, DowKokam, Sony, LG Chem, Moli



Important Note Regarding LiNMC Battery Care

All lithium-ion cells are “deep cycle” meaning that they have the ability to be fully charged and discharged. The life of the battery will significantly increase if the depth of each discharge is limited to 80% of the rated capacity.



Comparing LiNMC to Lead Acid

Table 2 provides a brief comparison of lead acid to LiNMC on a pack level. It should be noted that both chemistries have a wide range of parameter values, so this table is only a simplified representation of a very complex comparison.



Table 2: Battery Technology Comparison



Flooded lead acid

VRLA lead acid

LiNMC

Energy Density (Wh/L)

80

100

250

Specific Energy (Wh/kg)

30

40

256

Regular Maintenance

Yes

No

No

Initial Cost ($/kWh)

65

120

600

Cycle Life

1,200 @ 50%

1,000 @ 50% DoD

1,900 @ 80% DoD

Typical state of charge window

50%

50%

80%

Temperature sensitivity

Degrades significantly above 25°C

Degrades significantly above 25°C

Degrades significantly above 45°C

Efficiency

100% @20-hr rate

80% @4-hr rate

60% @1-hr rate

100% @20-hr rate

80% @4-hr rate

60% @1-hr rate

100% @20-hr rate

99% @4-hr rate

92% @1-hr rate

Voltage increments

2 V

2 V

3.7 V





For a description and comparison of the many different Lithium-ion battery types, visit Battery University:
Click Here for a Description of Lithium-ion Batteries at Battery University

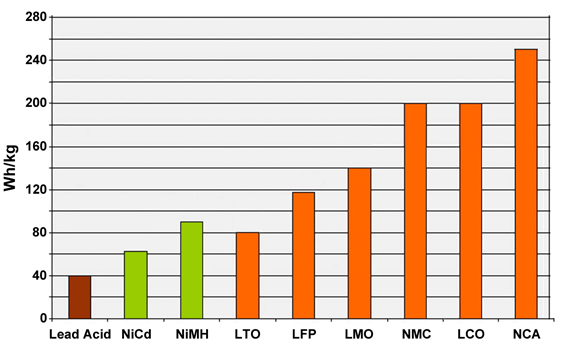

Figure 1 (from Battery University) compares the specific energy of lead, nickel- and lithium-based systems.
While NCA is the clear winner by storing more capacity than other systems, this only applies to specific energy. In terms of specific power and thermal stability, Li-manganese and Li-phosphate are superior. Li-titanate may have low capacity but this chemistry outlives most other secondary batteries in terms of life span. It has also the best cold temperature performance. As we move towards electric powertrains, safety and cycle life are becoming more important than capacity alone.

Battery Chemistries

Figure 1: Typical specific energy of lead, nickel- and lithium-based batteries




CONTACT INFORMATION:
Email: electroride@gmail.com
415-579-1966
